Single Exhaust Gas Expansion Joints

Bellows Hellas / Single Exhaust Gas Expansion Joints

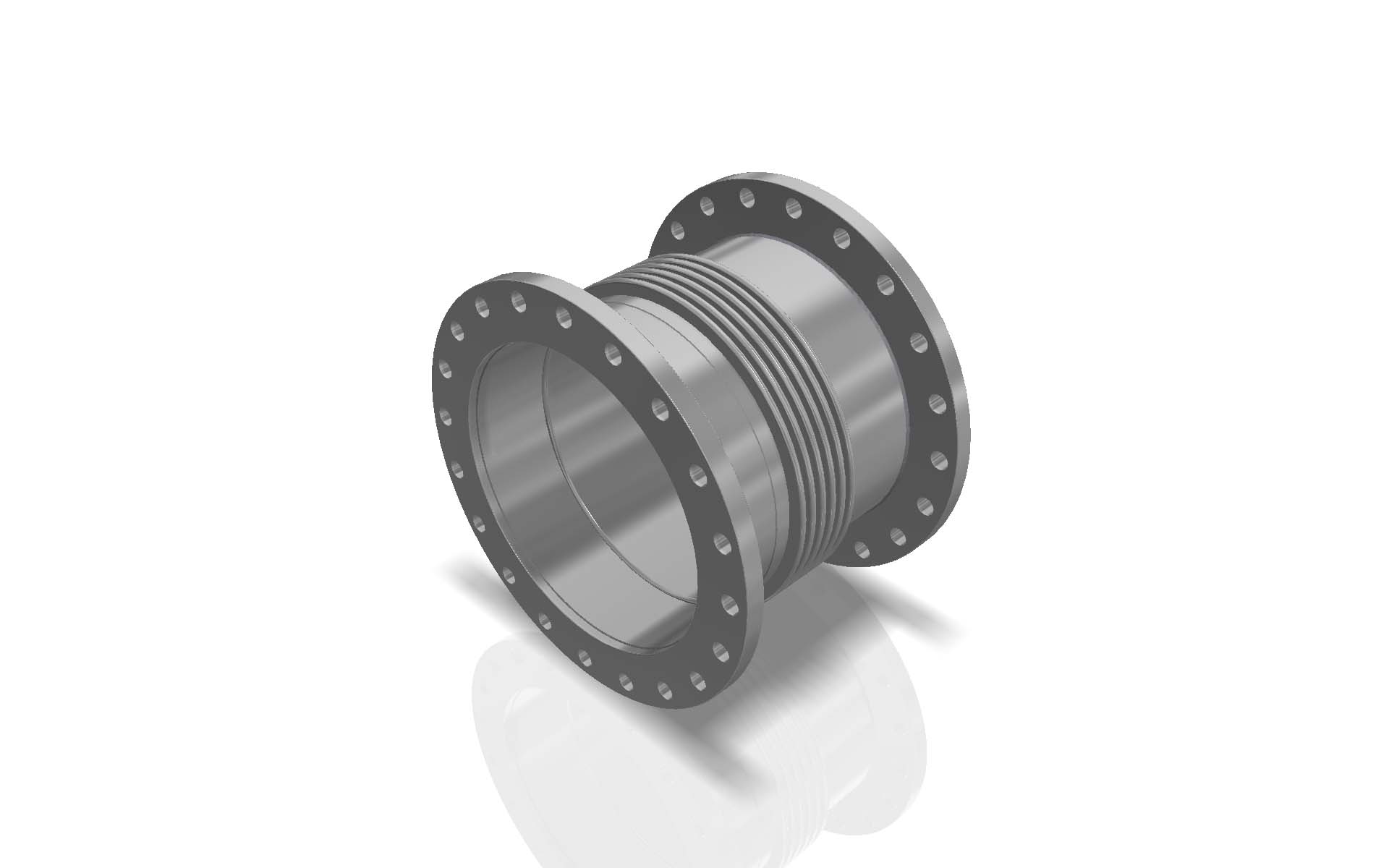

Expansion Joints with a single Multiply Bellow which consists of 3 sheets of metal with thickness of 0.3mm or 0.6mm depending on the size of the Joint. They are manufactured with various materials depending on the application and their size ranges from DN50A up to DN3000A. They can be fitted with a wide range of flanges, standard or custom made, with the option of being fixed or floating.

Μονοί Διαστολικοί Σύνδεσμοι Καυσαερίων

Single Exhaust Gas Expansion Joints Main Charasteristics

  • Material: Various Materials, depending on their application Indicative: SUS 321, SUS 316, SUS 316L, 254 SMO, DUPLEX, SUPER DUPLEX

  • Design: Single Multiply Bellow

  • Accessories: Liner, Tie Rods

  • Available Size Range: DN50A – DN3000A

  • Flange Type:

    • Standard of Custom Made
    • Fixed or Rotating

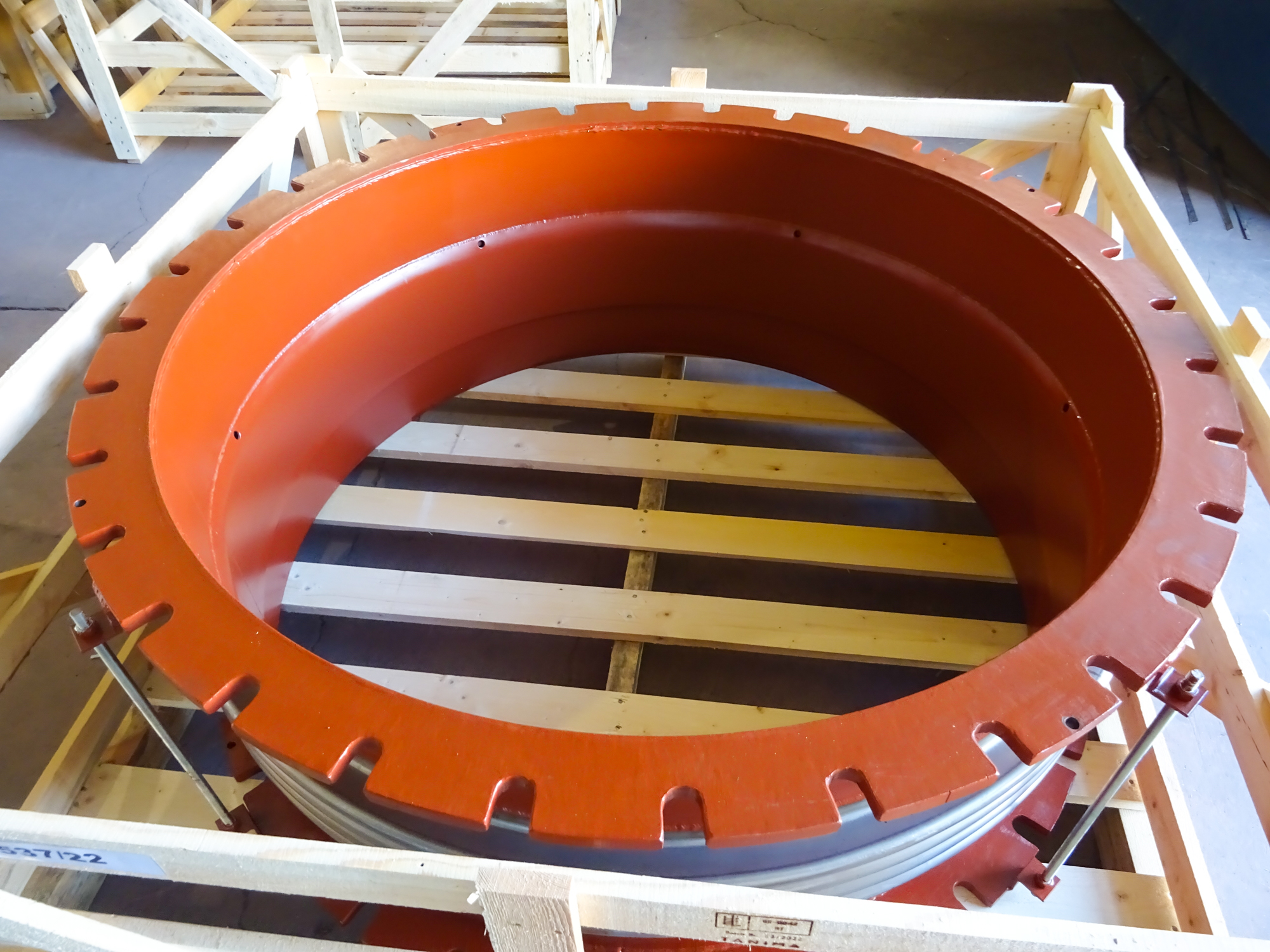

Single Exhaust Gas Expansion Joints photo gallery

BellowsHellas (59) - Single Gas Exhaust Expansion Joint
BellowsHellas (59) - Single Gas Exhaust Expansion Joint
BellowsHellas (59) - Single Gas Exhaust Expansion Joint
BellowsHellas (59) - Single Gas Exhaust Expansion Joint
BellowsHellas (59) - Single Gas Exhaust Expansion Joint
